$18.36
Original: $52.45
-65%#35 Roller Chain x 50 feet + 5 Free Connecting Links—
$52.45
$18.36The Story
|

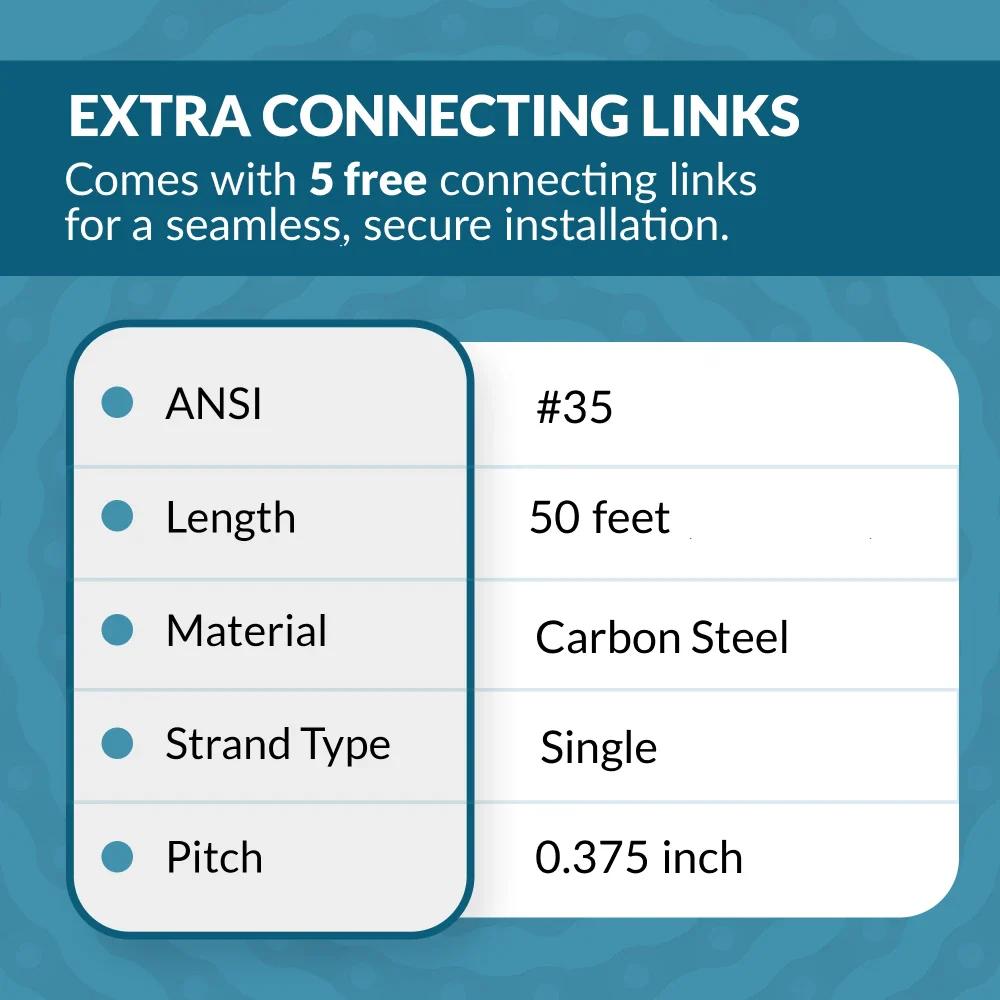

ANSI No |
#35 | LENGTH | 50 ft |
| PITCH | 0.375 inch (9.525 mm) | ROLLER DIAMETER (D1 MAX) |
0.2 inch (5.08 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.188 inch (4.77 mm) | PIN DIAMETER (D2 MAX) |
0.141 inch (3.58 mm) |
| PIN LENGTH (L MAX) |
0.488 inch (12.40 mm) | PIN LENGTH (LC MAX) |
0.518 inch (13.17 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.354 inch (9.0 mm) | PLATE THICKNESS (T MAX) |
0.051 inch (1.30 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
7.90/1795 kN/LB | WEIGHT | 0.221749 lb/ft (0.33 kg/m) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
|
ANSI No |
#35 | LENGTH | 50 ft |
| PITCH | 0.375 inch (9.525 mm) | ROLLER DIAMETER (D1 MAX) |
0.2 inch (5.08 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.188 inch (4.77 mm) | PIN DIAMETER (D2 MAX) |
0.141 inch (3.58 mm) |
| PIN LENGTH (L MAX) |
0.488 inch (12.40 mm) | PIN LENGTH (LC MAX) |
0.518 inch (13.17 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.354 inch (9.0 mm) | PLATE THICKNESS (T MAX) |
0.051 inch (1.30 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
7.90/1795 kN/LB | WEIGHT | 0.221749 lb/ft (0.33 kg/m) |
