$137.95

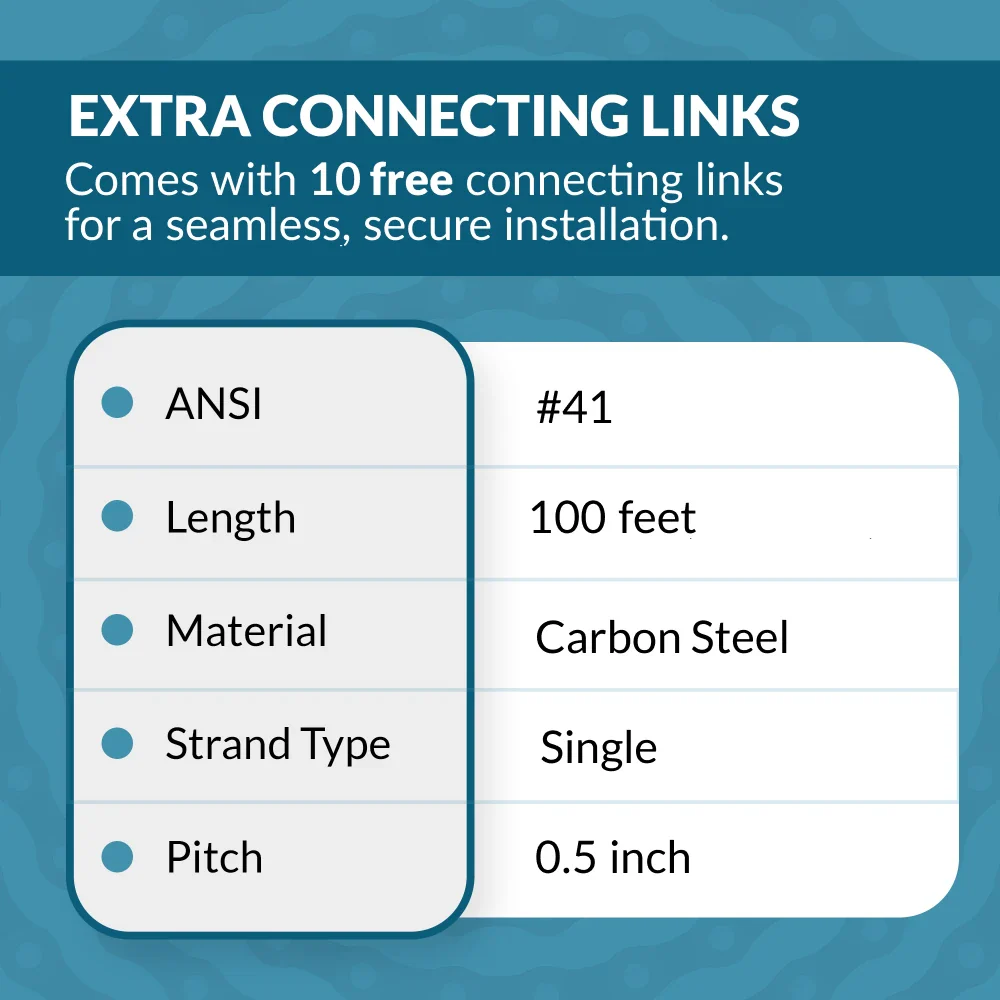

#41 Roller Chain x 100 feet + 10 Free Connecting Links—
$137.95
The Story
|

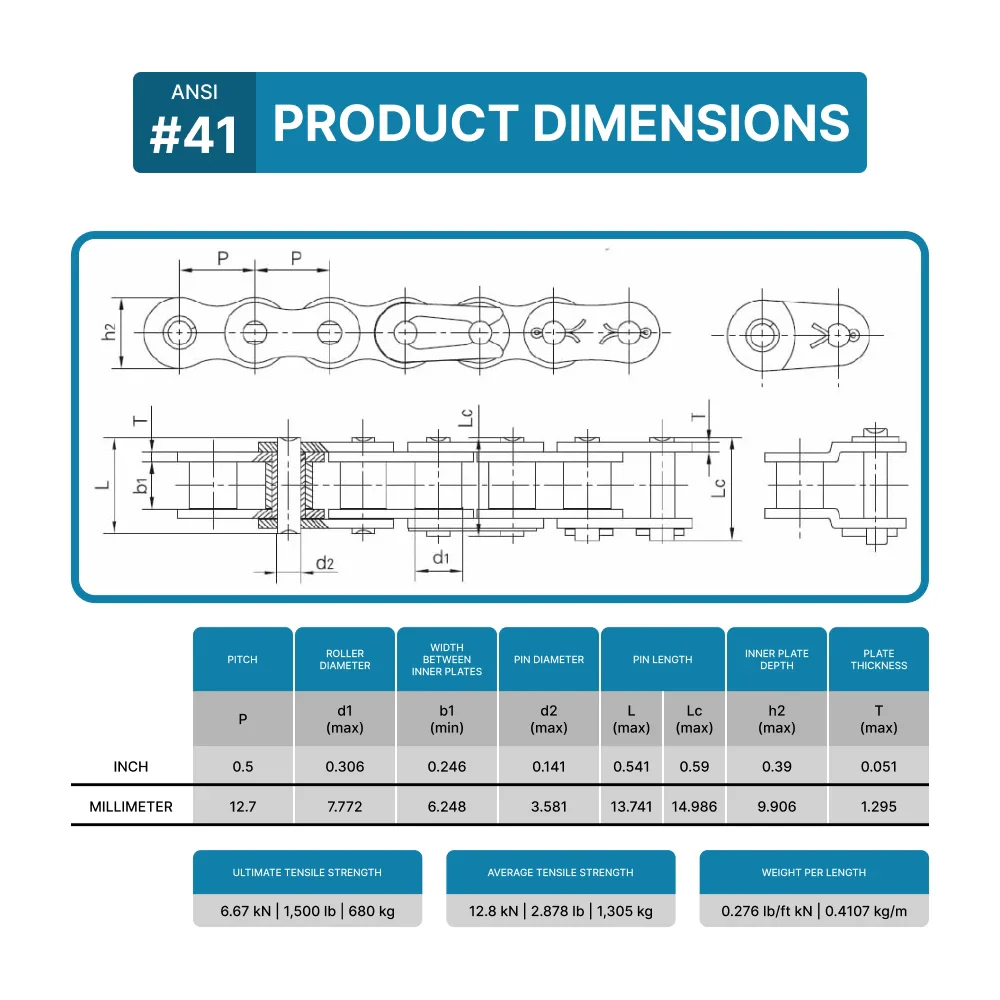

ANSI No |
#41 | LENGTH | 100 ft |
| PITCH | 0.5 inch (12.7 mm) | ROLLER DIAMETER (D1 MAX) |
0.306 inch (7.77 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.246 inch (6.25 mm) | PIN DIAMETER (D2 MAX) |
0.141 inch (3.58 mm) |
| PIN LENGTH (L MAX) |
0.541 inch (13.75 mm) | PIN LENGTH (LC MAX) |
0.590 inch (15.00 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.390 inch (9.91 mm) | PLATE THICKNESS (T MAX) |
0.051 inch (1.30 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
6.67/1516 kN/LB | WEIGHT | 0.276 lb/ft (0.41 kg/m) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
|
ANSI No |
#41 | LENGTH | 100 ft |
| PITCH | 0.5 inch (12.7 mm) | ROLLER DIAMETER (D1 MAX) |
0.306 inch (7.77 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.246 inch (6.25 mm) | PIN DIAMETER (D2 MAX) |
0.141 inch (3.58 mm) |
| PIN LENGTH (L MAX) |
0.541 inch (13.75 mm) | PIN LENGTH (LC MAX) |
0.590 inch (15.00 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.390 inch (9.91 mm) | PLATE THICKNESS (T MAX) |
0.051 inch (1.30 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
6.67/1516 kN/LB | WEIGHT | 0.276 lb/ft (0.41 kg/m) |
