$8.24
Original: $23.55

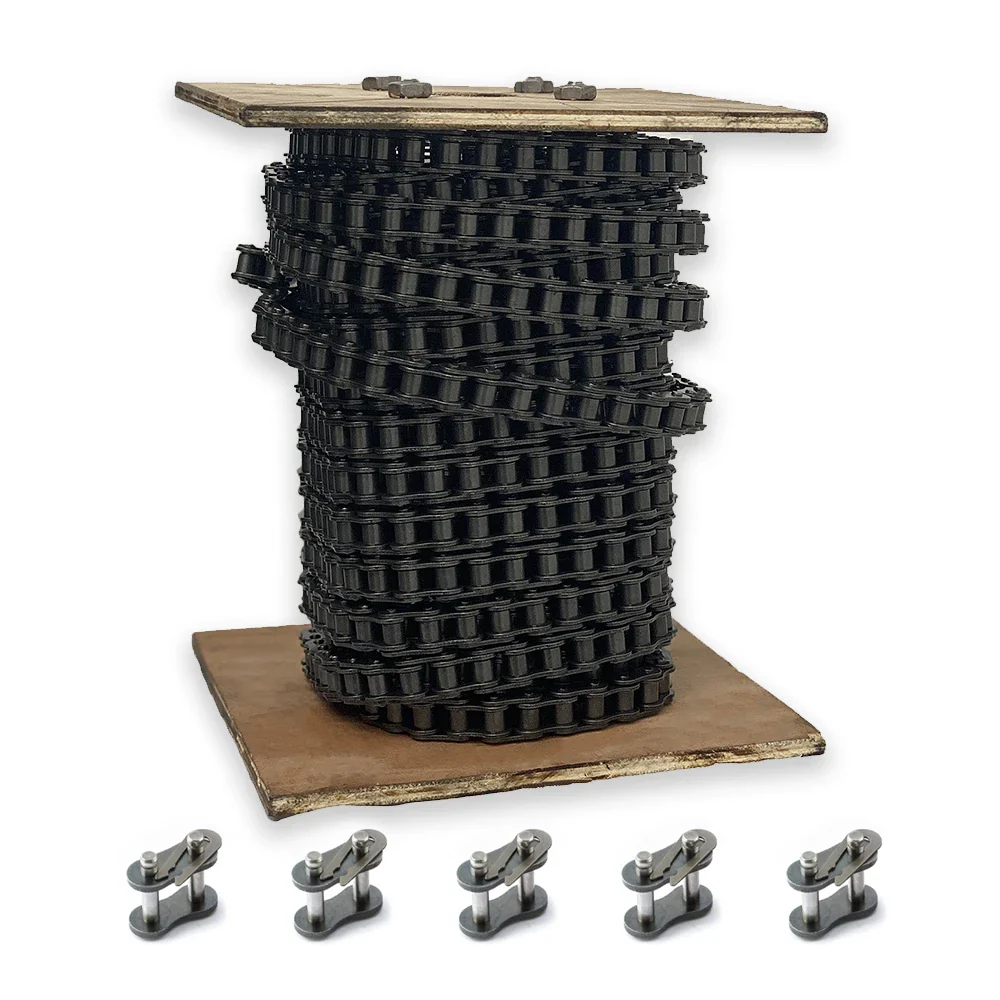

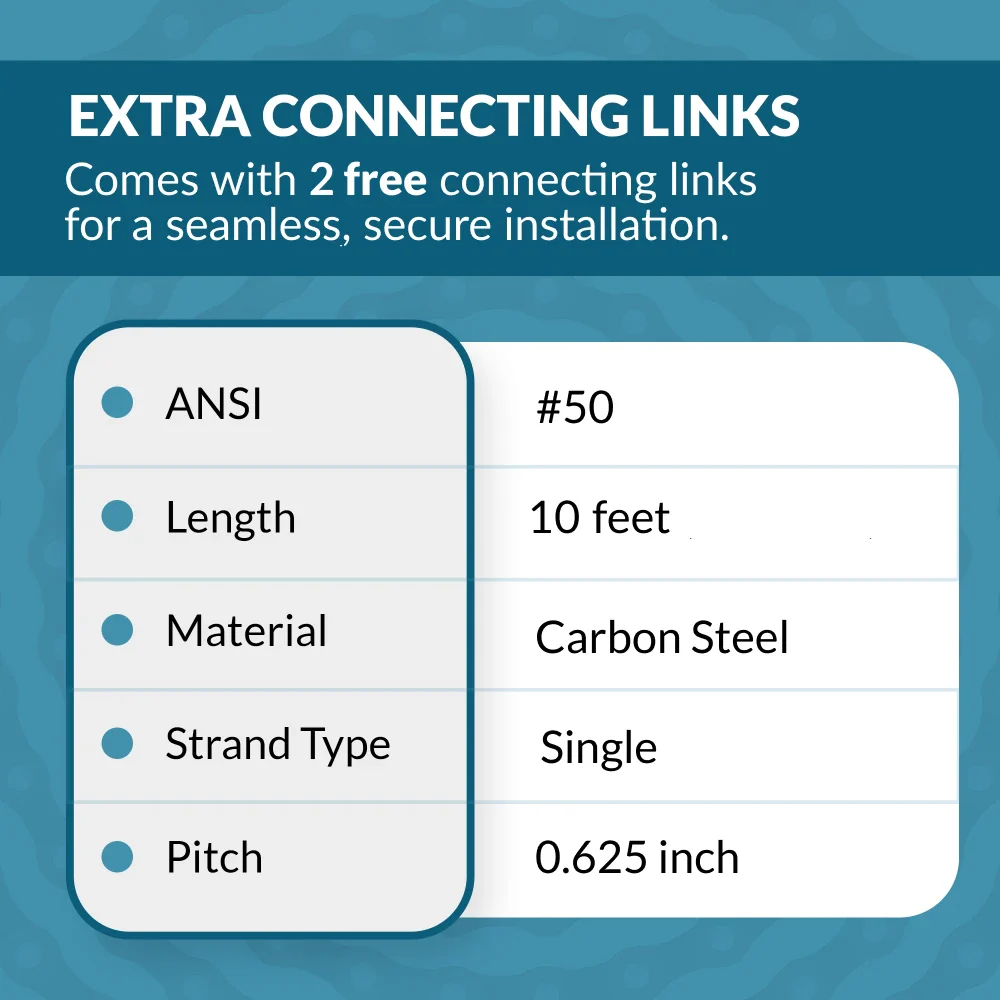

-65%#50 Roller Chain x 10 feet + 2 Free Connecting Links—
$23.55
$8.24The Story

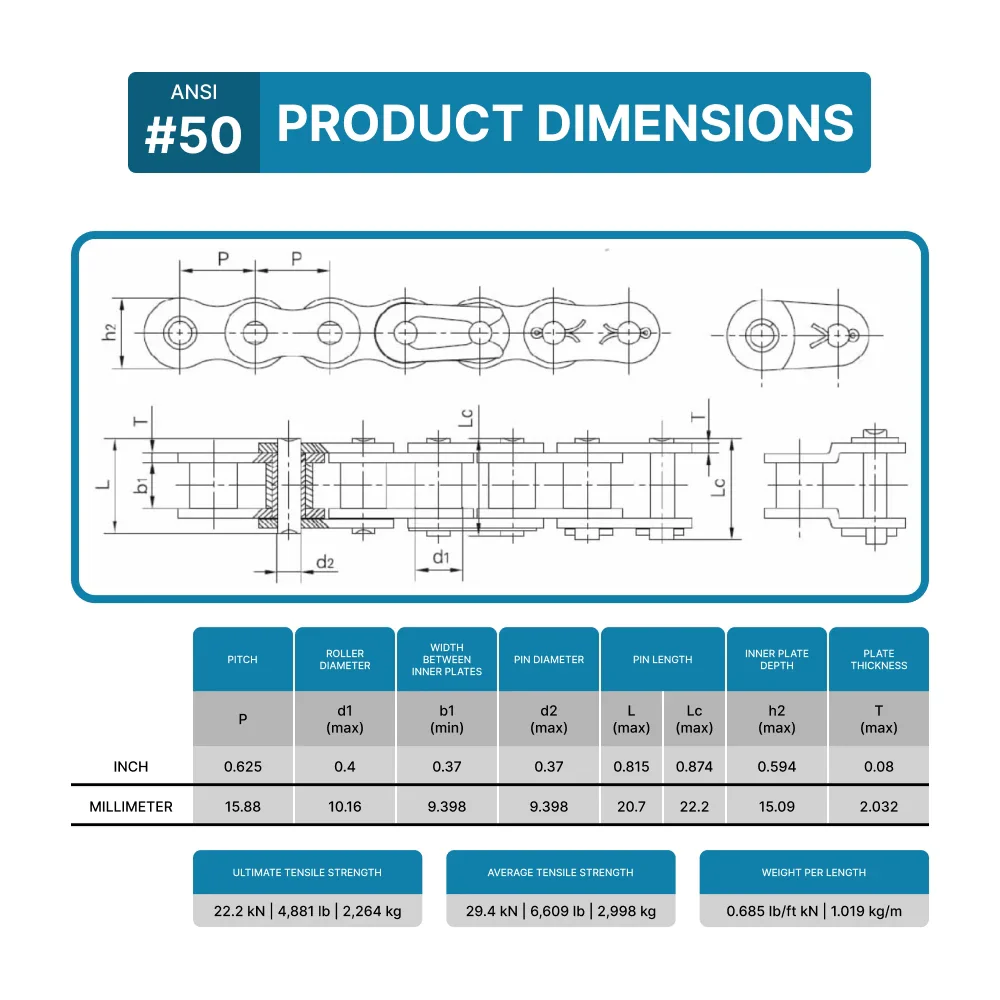

| ANSI CHAIN NO. | #50 | LENGTH | 10 ft |
| PITCH (P) | 0.525 inch (15.875 mm) |
ROLLER DIAMETER (D1) | 0.4 inch (10.16 mm) |
| WIDTH BETWEEN PLATES (B1) | 0.370 inch (9.4 mm) |
PIN DIAMETER (D2) | 0.2 inch (5.08 mm) |
| PIN LENGTH (L MAX) | 0.815 inch (20.70 mm) |
PIN LENGTH (LC MAX) | 0.874 inch (22.20 mm) |
| INNER PLATE DEPTH (H2) | 0.594 inch (15.09 mm) |
PLATE THICKNESS (T) | 0.080 inch (2.03 mm) |
| ULTIMATE TENSILE STRENGTH | 22.20/5045 kN/LB | AVERAGE TENSILE STRENGTH | 29.4 kN |
| WEIGHT | 0.685 lb/ft (1.02 kg/m) |
MATERIAL | Carbon Steel |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| ANSI CHAIN NO. | #50 | LENGTH | 10 ft |
| PITCH (P) | 0.525 inch (15.875 mm) |
ROLLER DIAMETER (D1) | 0.4 inch (10.16 mm) |
| WIDTH BETWEEN PLATES (B1) | 0.370 inch (9.4 mm) |
PIN DIAMETER (D2) | 0.2 inch (5.08 mm) |
| PIN LENGTH (L MAX) | 0.815 inch (20.70 mm) |
PIN LENGTH (LC MAX) | 0.874 inch (22.20 mm) |
| INNER PLATE DEPTH (H2) | 0.594 inch (15.09 mm) |
PLATE THICKNESS (T) | 0.080 inch (2.03 mm) |
| ULTIMATE TENSILE STRENGTH | 22.20/5045 kN/LB | AVERAGE TENSILE STRENGTH | 29.4 kN |
| WEIGHT | 0.685 lb/ft (1.02 kg/m) |
MATERIAL | Carbon Steel |
