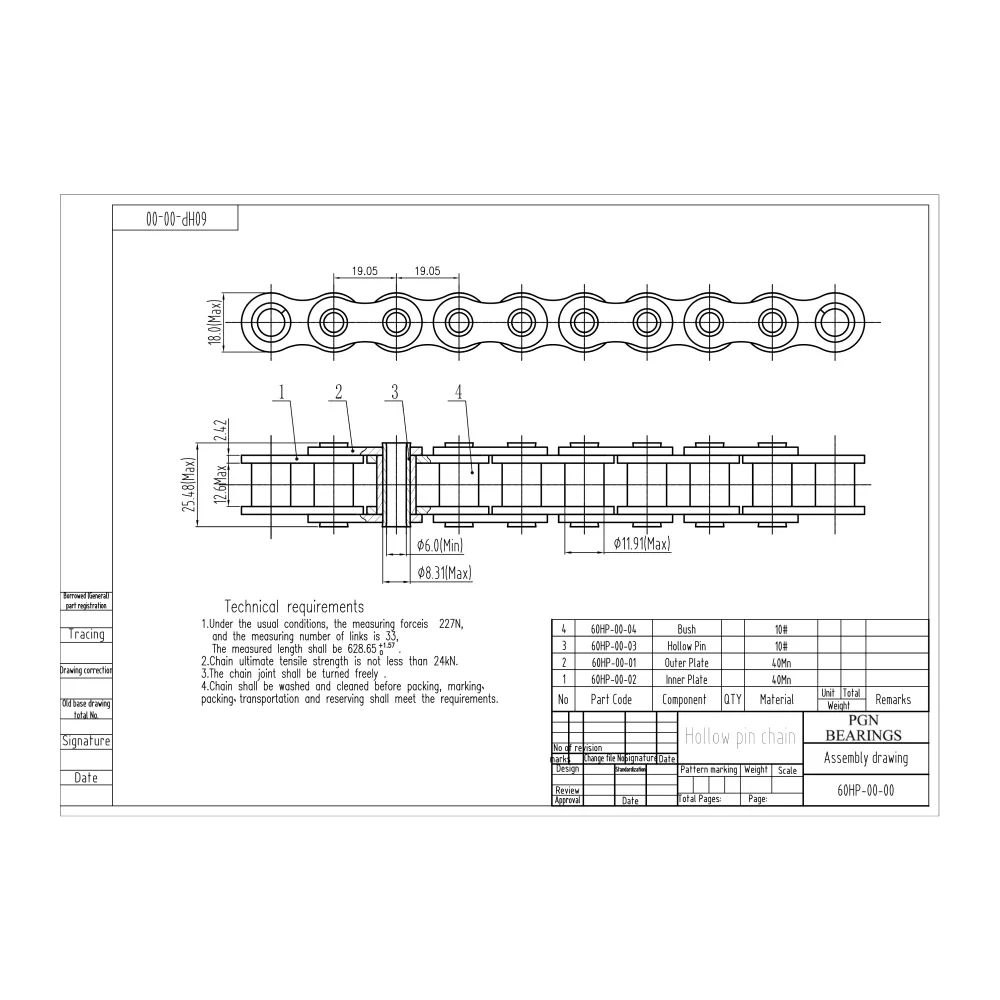

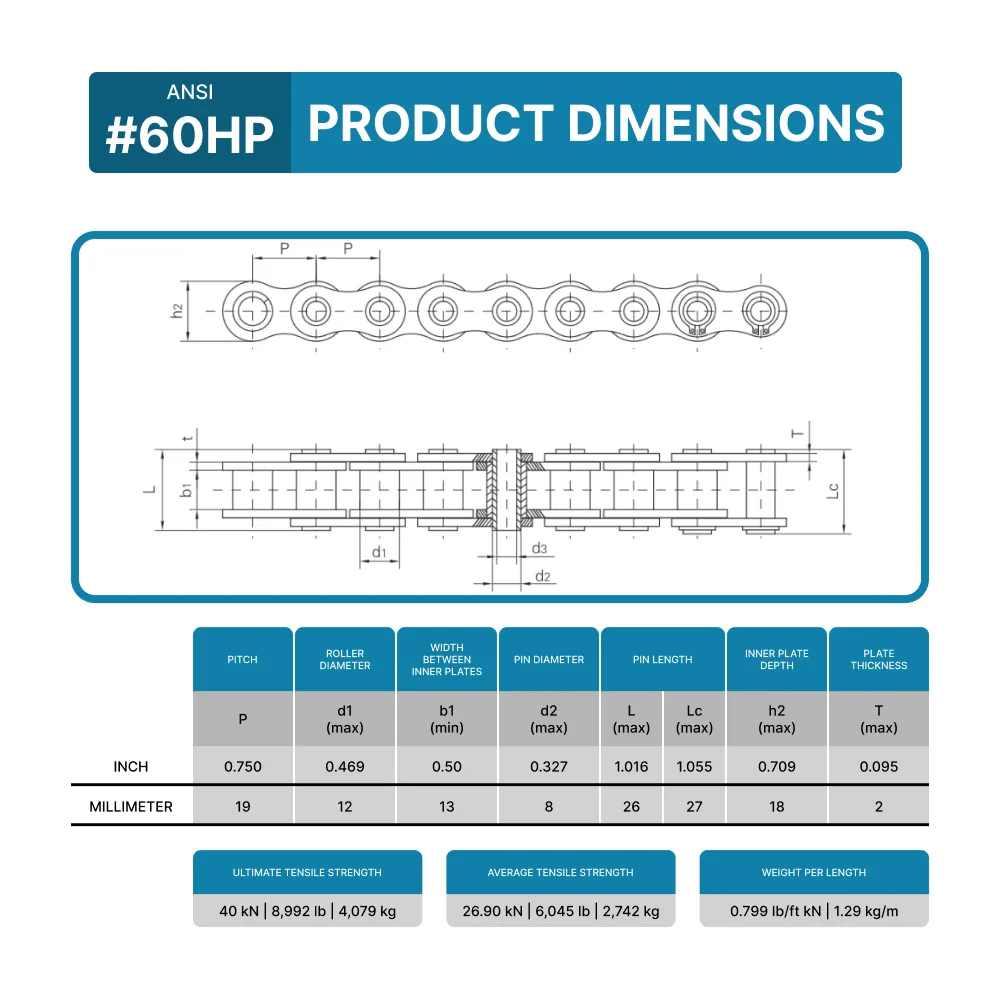

ANSI No |
#60HP | LENGTH | 10 ft |
| PITCH | 0.750 inch (19 mm) | ROLLER DIAMETER (D1 MAX) |
0.469 inch (12 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.50 inch (13 mm) | PIN DIAMETER (D2 MAX) |
0.327 inch (8 mm) |
| PIN LENGTH (L MAX) |
1.016 inch (26 mm) | PIN LENGTH (LC MAX) |
1.055 inch (27 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.709 inch (18 mm) | PLATE THICKNESS (T MAX) |
0.095 inch (2 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
40/8,992 kN/LB | WEIGHT |
0.799 lb/ft (1.29 kg/m) |
Read More
60HP Hollow Pin Roller Chain: Flexible Solution for Automated Systems
The 60HP hollow pin roller chain is designed for applications that require flexibility and precision. Its hollow pin design allows direct integration of attachments.
In addition, it offers a strong balance between strength and adaptability. As a result, it is widely used in automated systems.
Another key advantage is ease of modification. The 60HP hollow pin roller chain allows quick system adjustments.
This leads to improved efficiency and reduced downtime.
What is a 60HP Hollow Pin Chain?
The 60HP hollow pin roller chain is an ANSI #60 chain with hollow pins.
These hollow pins allow rods and attachments to be inserted directly into the chain.
It follows ANSI standards, ensuring compatibility with #60 sprockets.
This makes it ideal for both transmission and conveyor systems.
Where is it used?
The 60HP hollow pin roller chain is used in:
-
Assembly lines
-
Packaging equipment
-
Light to medium conveyors
-
Custom attachment systems
Its design allows easy system customization.
Key Benefits
Customization capability
Allows direct attachment integration.
ANSI compatibility
Works with standard sprockets.
Reliable performance
Handles industrial loads efficiently.
Design flexibility
Ideal for modular systems.

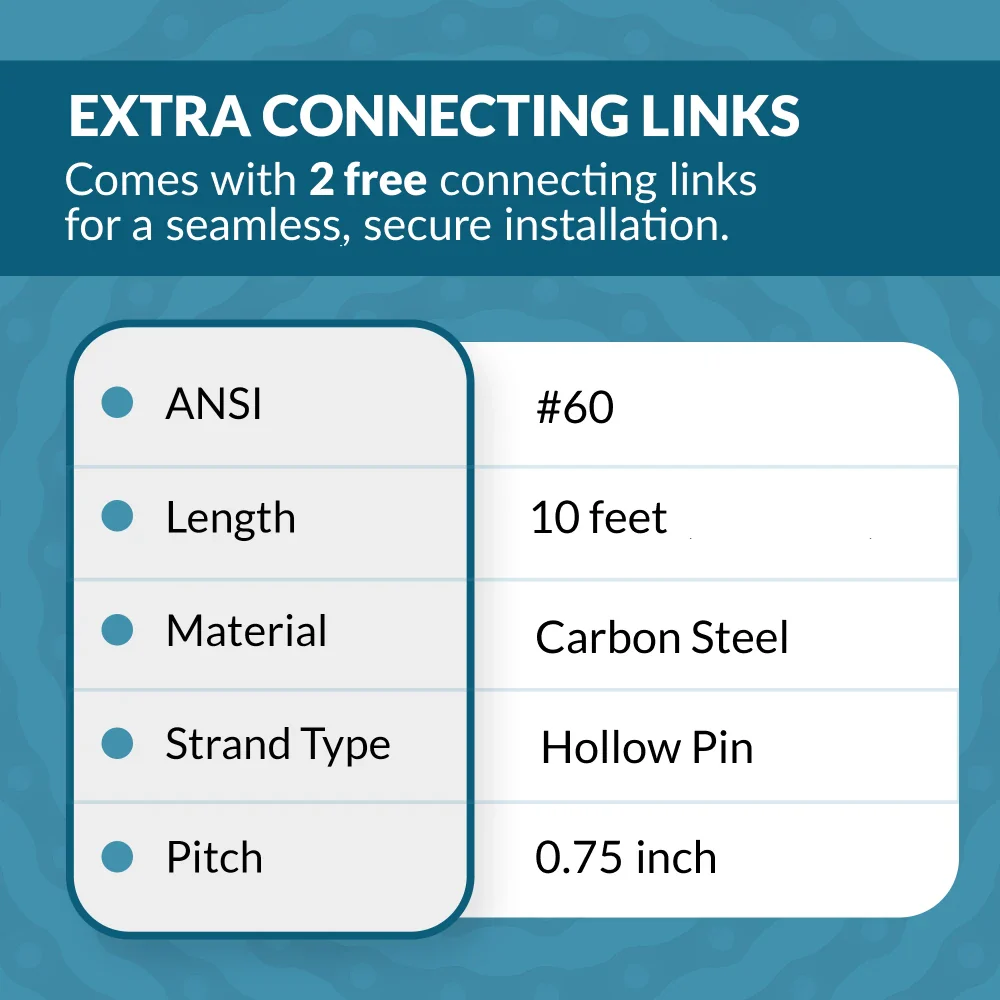

Technical Specifications
-
Standard: ANSI #60HP
-
Pitch: 0.75”
-
Type: Hollow pin roller chain
-
Material: Carbon steel
-
Length: 10FT
How to Choose the Right Chain
Check if attachments are needed.
Confirm sprocket compatibility.
Evaluate load conditions.
These steps ensure proper selection.
Maintenance Tips
Lubricate regularly.
Check alignment.
Inspect hollow pins.
These steps extend lifespan.
Why Choose PGN Bearings?
ANSI-compliant products.
Durable construction.
Fast shipping.
Technical support.
