Original: $44.95
-65%$44.95
$15.73The Story
|

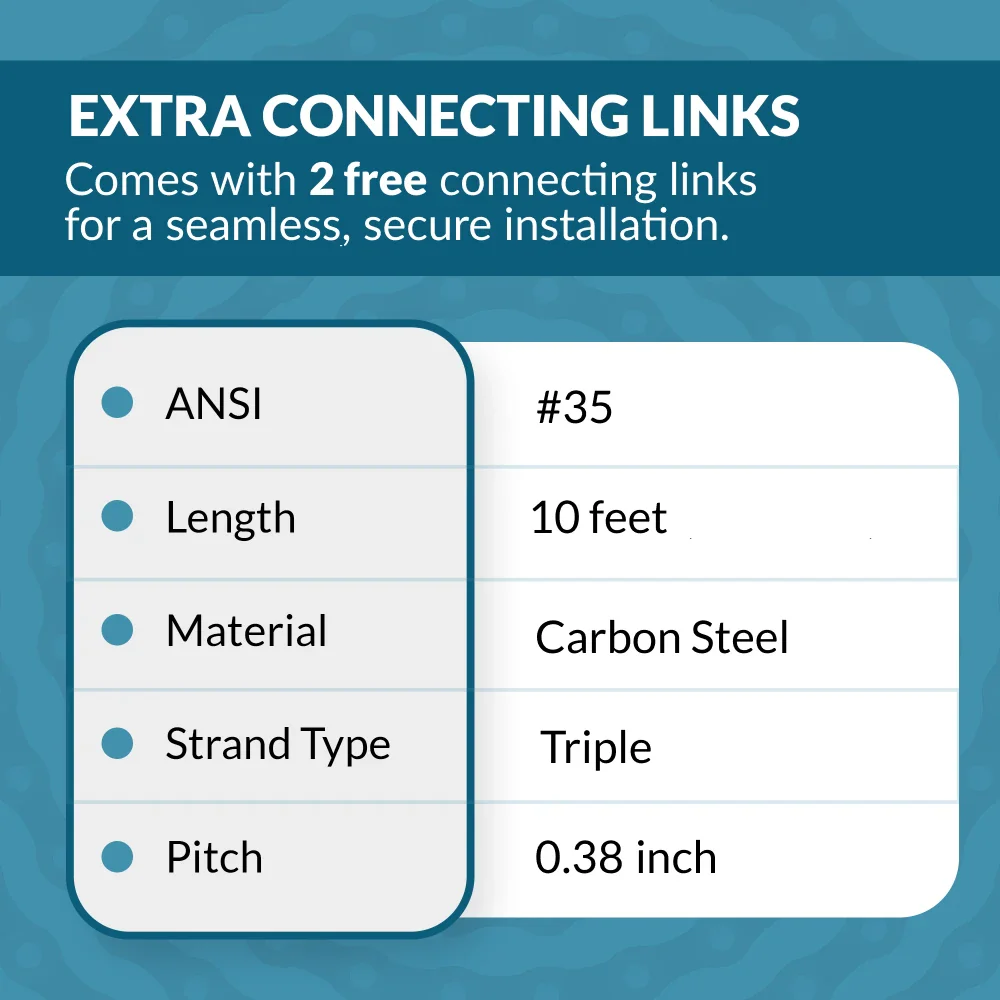

ANSI No |
#35-3 | LENGTH | 10 ft |
| PITCH | 0.38 inch (9.525 mm) | ROLLER DIAMETER (D1 MAX) |
0.2 inch (5.08 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.19 inch (4.77 mm) | PIN DIAMETER (D2 MAX) |
0.14 inch (3.58 mm) |
| PIN LENGTH (L MAX) |
1.29 inch (32.7 mm) | PIN LENGTH (LC MAX) |
1.32 inch (33.5 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.35 inch (9 mm) | PLATE THICKNESS (T MAX) |
0.05 inch (1.3 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
23.7/5,386 kN/LB | WEIGHT | 0.7 lb/ft (1.5 kg/m) |
Read More

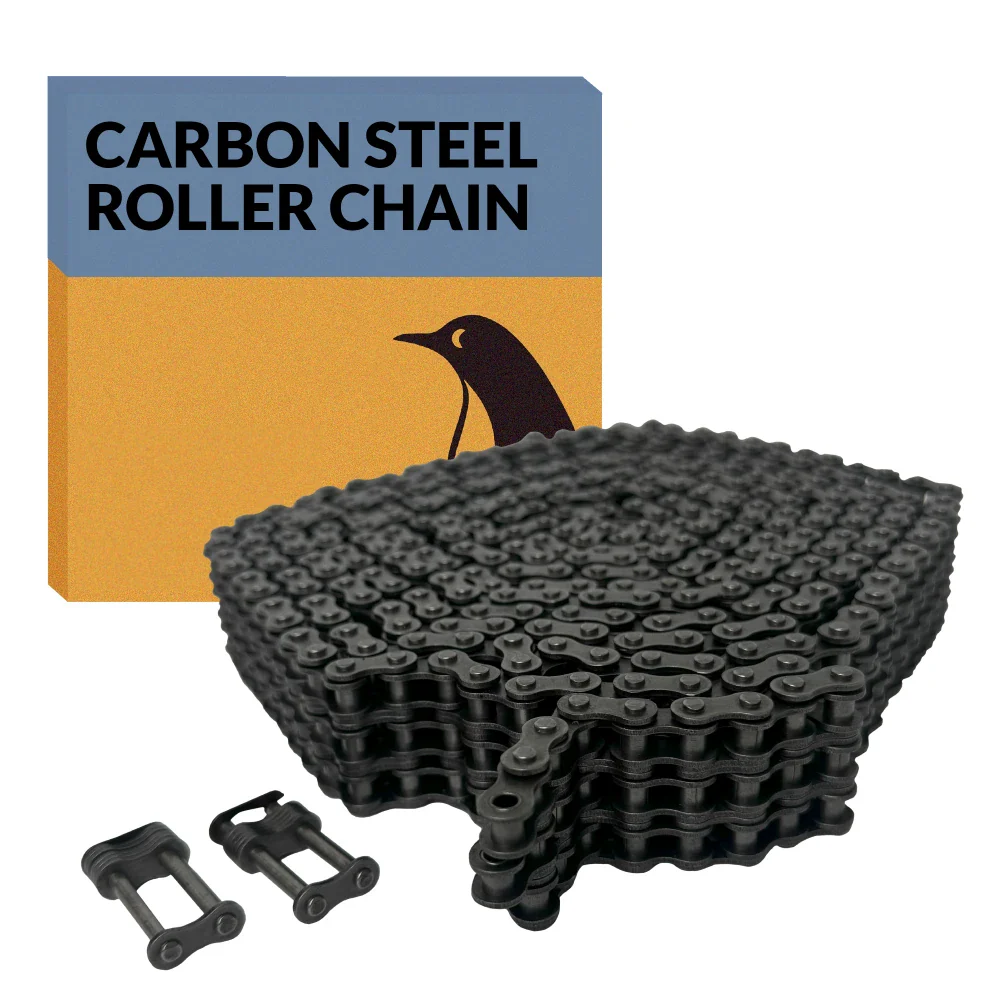

35-3 Triplex Roller Chain: Compact Power for Lightweight Systems
The 35-3 triplex roller chain is designed for applications that require higher performance in compact systems.
Its triple strand design increases load capacity without increasing chain size.
As a result, it is ideal for systems where space is limited but performance is critical.
What is a 35-3 Triplex Roller Chain?
The 35-3 triplex roller chain consists of three parallel strands of links.
This design increases load capacity without changing pitch.
It is commonly used when a standard #35 chain is not strong enough.
Multi-strand chains distribute load more evenly, improving durability.
Where is it used?
The 35-3 triplex roller chain is used in:
-
Compact automation systems
-
Light packaging equipment
-
Small industrial machinery
-
High-cycle production lines
Its design allows higher performance in limited space.
Key Benefits
Compact high performance
Triple strands increase capacity.
Load distribution
Reduces stress per component.
Longer service life
Less wear over time.
Lightweight efficiency
Ideal for small systems.
How to Choose the Right Chain
Evaluate load requirements.
Check ANSI #35-3 compatibility.
Consider system size.
These steps ensure proper selection.
Maintenance Tips
Lubricate regularly.
Check alignment.
Inspect frequently.
These practices extend lifespan.
Why Choose PGN Bearings?
ANSI-compliant products.
Reliable performance.
Fast shipping.
Technical support.
