Original: $529.95
-65%$529.95
$185.48The Story
|

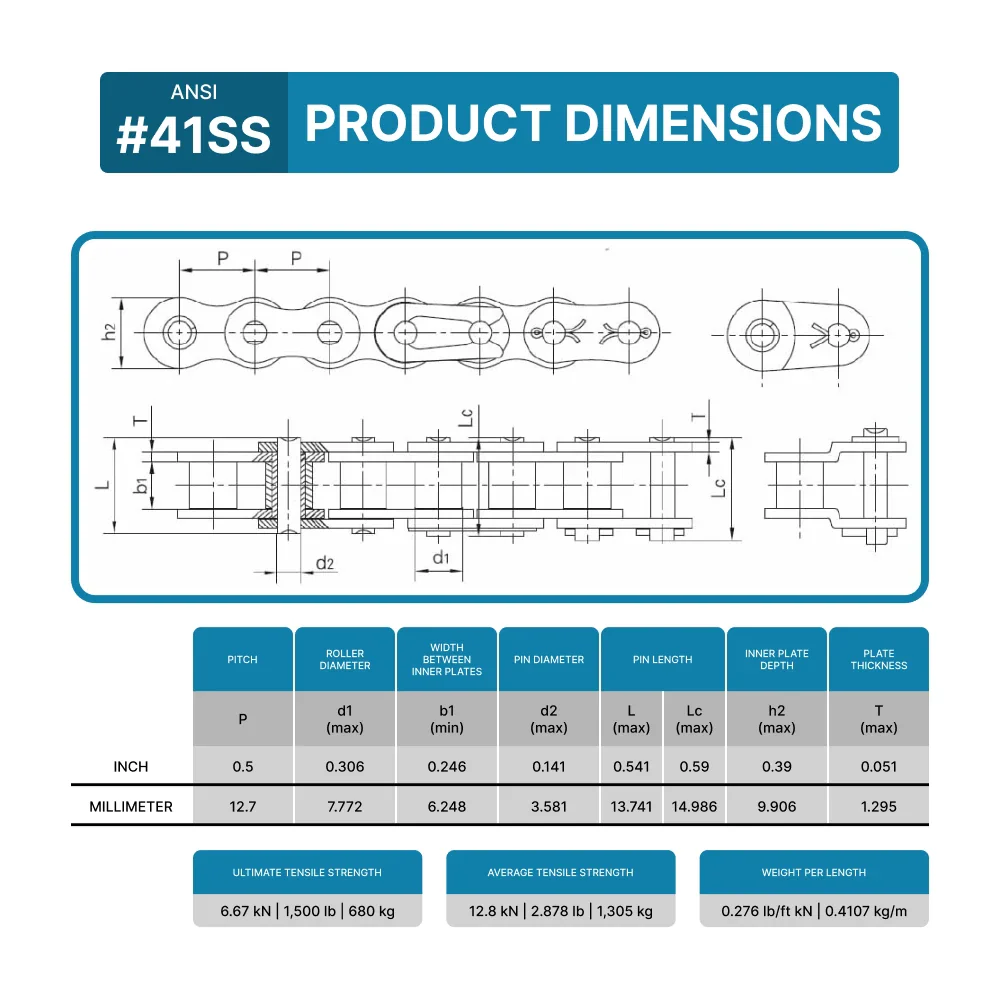

ANSI No |
#41 | LENGTH | 100 ft |
| PITCH | 0.5 inch (12.7 mm) | ROLLER DIAMETER (D1 MAX) |
0.306 inch (7.77 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.246 inch (6.25 mm) | PIN DIAMETER (D2 MAX) |
0.141 inch (3.58 mm) |
| PIN LENGTH (L MAX) |
0.541 inch (13.75 mm) | PIN LENGTH (LC MAX) |
0.590 inch (15.00 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.390 inch (9.91 mm) | PLATE THICKNESS (T MAX) |
0.051 inch (1.30 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
6.67/1516 kN/LB | WEIGHT | 0.276 lb/ft (0.41 kg/m) |
Read More
41SS Stainless Steel Roller Chain: Precision and Durability for Compact Systems
The 41SS stainless steel roller chain is designed for applications that require precision, compact size, and corrosion resistance.
In addition, it performs well in both mechanical and light industrial systems. As a result, it is widely used in small-scale applications.
Another key advantage is stability. The 41SS stainless steel roller chain maintains consistent performance under continuous use.
This leads to improved efficiency and reliability.
What is a 41SS Stainless Steel Chain?
The 41SS stainless steel roller chain is an ANSI #41 chain made from stainless steel.
It provides corrosion resistance and reliable performance.
It is also compatible with ANSI #41 sprockets, making installation simple.
Where is it used?
The 41SS stainless steel roller chain is used in:
-
Bicycles
-
Mini bikes
-
Motorcycles
-
Go-karts
-
Industrial equipment
These applications highlight its versatility and compact design.
Key Benefits
Corrosion resistance
Helps prevent rust.
Compact precision
Ideal for smaller systems.
ANSI compatibility
Works with standard sprockets.
Versatile use
Suitable for mechanical and industrial applications.
Why choose a compact stainless chain?
The 41SS stainless steel roller chain is ideal for systems with limited space.
It offers reliable performance while maintaining corrosion resistance.
This makes it a practical solution for light-duty applications.
How to Choose the Right Chain
Evaluate system size.
Check ANSI #41 compatibility.
Consider environmental exposure.
These steps ensure proper selection.
Maintenance Tips
Keep the chain clean.
Lubricate when needed.
Inspect regularly.
These practices extend lifespan.
Why Choose PGN Bearings?
Versatile product range.
ANSI-compliant components.
Fast shipping.
Technical support.
