Select Quantity
From $0.34
Original: $0.97
-65%#25 Roller Chain Connecting Link—
$0.97
$0.34The Story
|

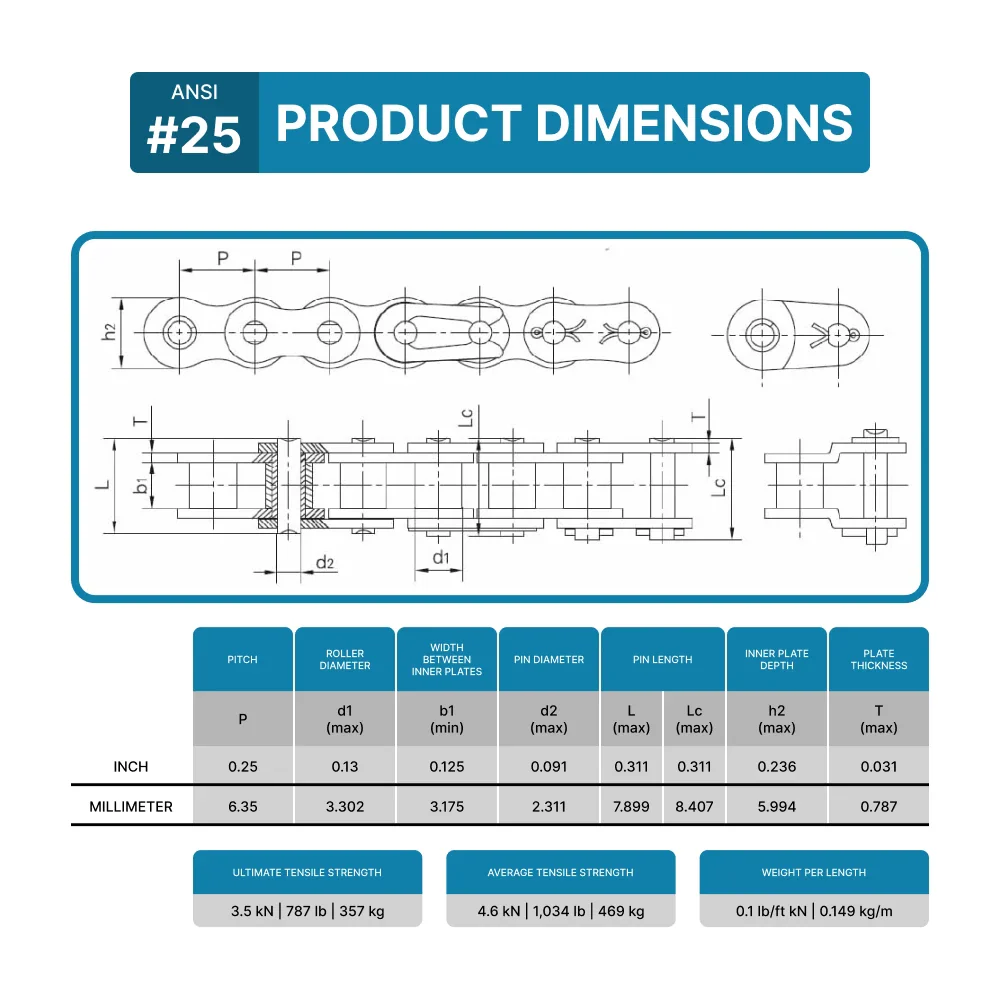

ANSI No |
#25 | MATERIAL | Carbon Steel |
| PITCH | 0.25 inch (6.350 mm) | ROLLER DIAMETER (D1 MAX) |
0.130 inch (3.30 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.125 inch (3.18 mm) | PIN DIAMETER (D2 MAX) |
0.091 inch (2.31 mm) |
| PIN LENGTH (L MAX) |
0.311 inch (7.90 mm) | PIN LENGTH (LC MAX) |
0.331 inch (8.40 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.236 inch (6.0 mm) | PLATE THICKNESS (T MAX) |
0.031 inch (0.80 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
3.50/795 kN/LB | WEIGHT | 0.100 lb/ft (0.15 kg/m) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
|
ANSI No |
#25 | MATERIAL | Carbon Steel |
| PITCH | 0.25 inch (6.350 mm) | ROLLER DIAMETER (D1 MAX) |
0.130 inch (3.30 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.125 inch (3.18 mm) | PIN DIAMETER (D2 MAX) |
0.091 inch (2.31 mm) |
| PIN LENGTH (L MAX) |
0.311 inch (7.90 mm) | PIN LENGTH (LC MAX) |
0.331 inch (8.40 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.236 inch (6.0 mm) | PLATE THICKNESS (T MAX) |
0.031 inch (0.80 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
3.50/795 kN/LB | WEIGHT | 0.100 lb/ft (0.15 kg/m) |
