-65%#80 Roller Chain Connecting Link—
$2.55
$0.89The Story
|

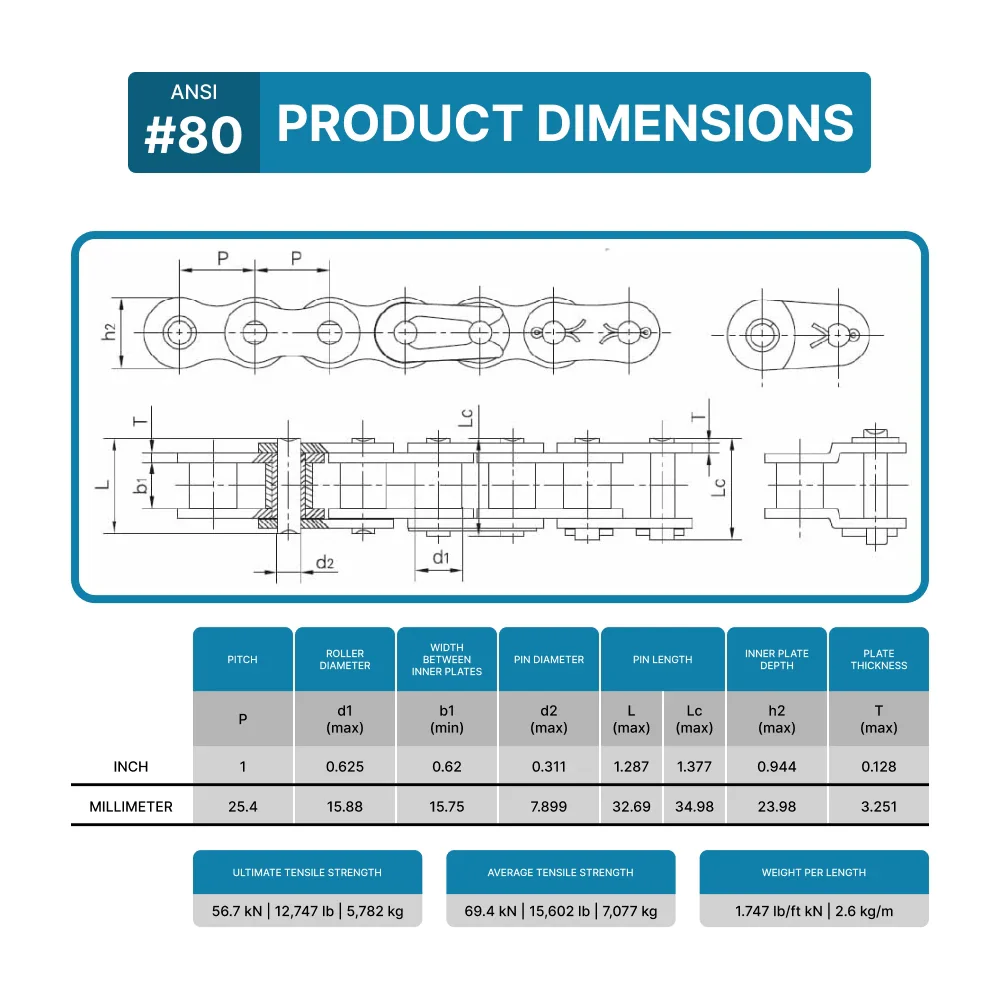

ANSI No |
#80 | MATERIAL | Carbon Steel |
| PITCH | 1.0 inch (25.400 mm) | ROLLER DIAMETER (D1 MAX) |
0.625 inch (15.88 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.620 inch (15.75 mm) | PIN DIAMETER (D2 MAX) |
0.311 inch (7.92 mm) |
| PIN LENGTH (L MAX) |
1.287 inch (32.70 mm) | PIN LENGTH (LC MAX) |
1.377 inch (35.00 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.944 inch (24.00 mm) | PLATE THICKNESS (T MAX) |
0.128 inch (3.25 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
56.70/12886 kN/LB | WEIGHT |
1.747 lb/ft (2.6 kg/m) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
|
ANSI No |
#80 | MATERIAL | Carbon Steel |
| PITCH | 1.0 inch (25.400 mm) | ROLLER DIAMETER (D1 MAX) |
0.625 inch (15.88 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.620 inch (15.75 mm) | PIN DIAMETER (D2 MAX) |
0.311 inch (7.92 mm) |
| PIN LENGTH (L MAX) |
1.287 inch (32.70 mm) | PIN LENGTH (LC MAX) |
1.377 inch (35.00 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.944 inch (24.00 mm) | PLATE THICKNESS (T MAX) |
0.128 inch (3.25 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
56.70/12886 kN/LB | WEIGHT |
1.747 lb/ft (2.6 kg/m) |
