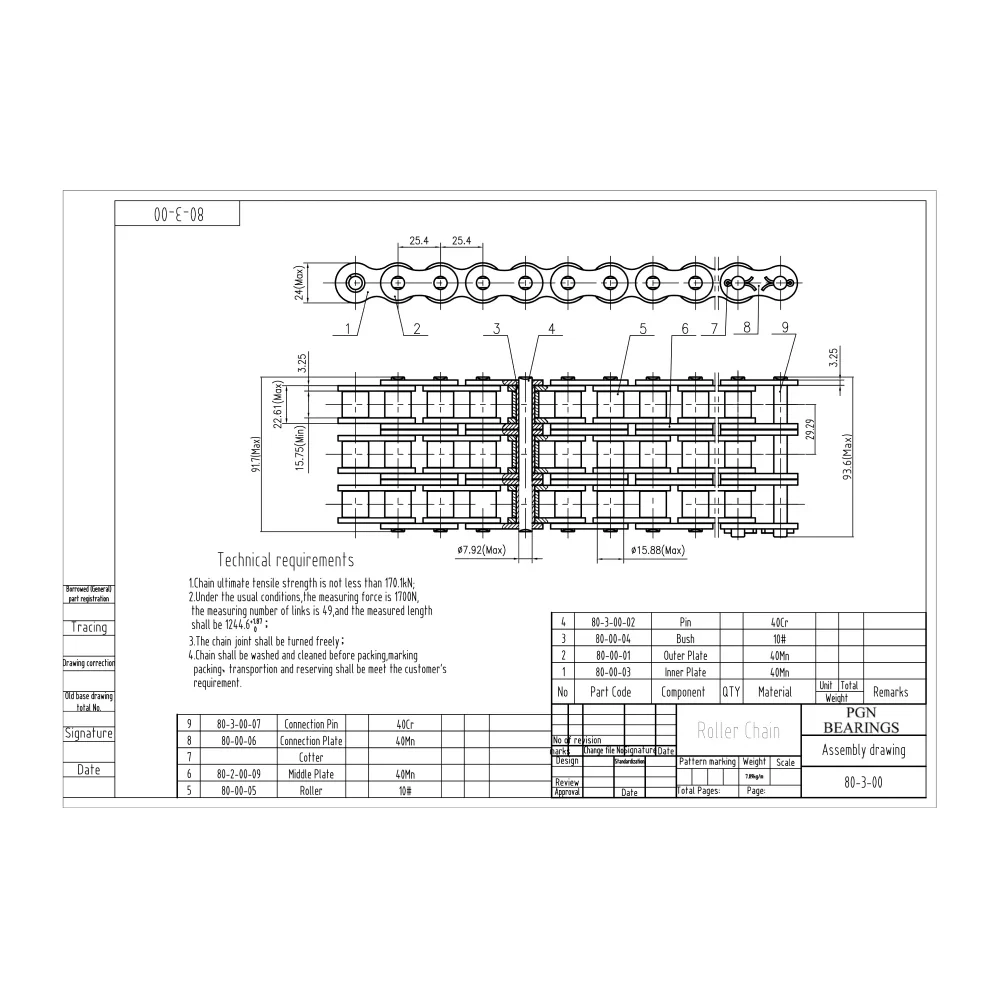

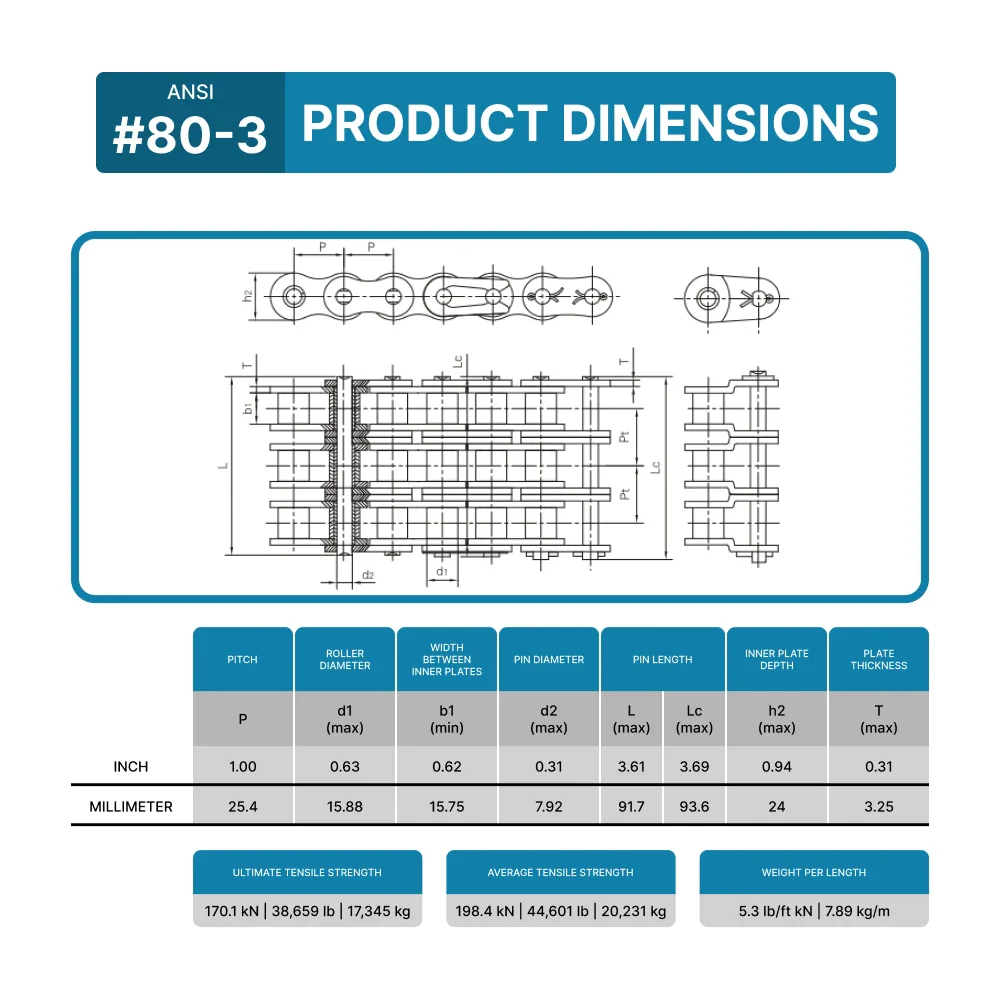

ANSI No |
#80-3 | LENGTH | 10 ft |
| PITCH | 1.00 inch (25.4 mm) | ROLLER DIAMETER (D1 MAX) |
0.63 inch (15.88 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.62 inch (15.75 mm) | PIN DIAMETER (D2 MAX) |
0.31 inch (7.92 mm) |
| PIN LENGTH (L MAX) |
3.61 inch (91.7 mm) | PIN LENGTH (LC MAX) |
3.69 inch (93.6 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.94 inch (24 mm) | PLATE THICKNESS (T MAX) |
0.31 inch (3.25 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
170.1/38,659 kN/LB | WEIGHT | 5.3 lb/ft (7.89 kg/m) |
Read More

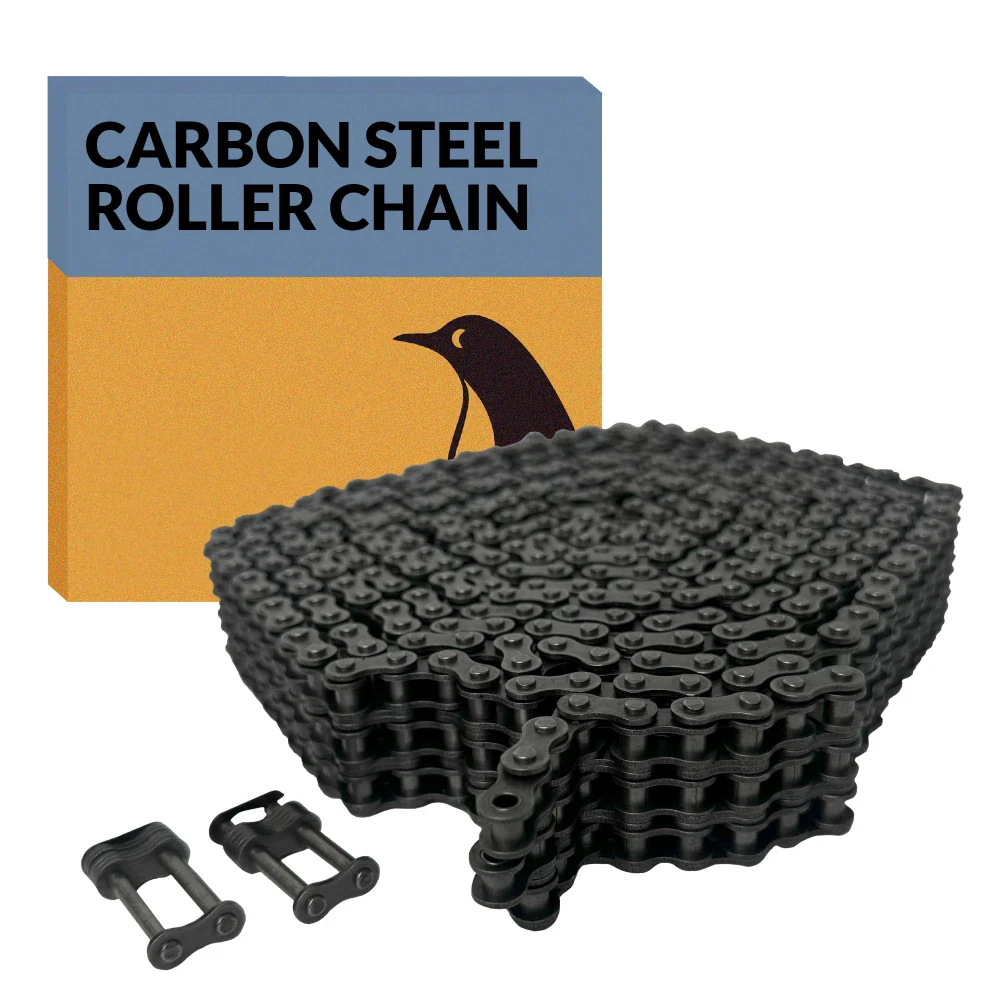

80-3 Triplex Roller Chain: Maximum Strength for Power Transmission
The 80-3 triplex roller chain is a high-performance solution for industrial power transmission. Its triple strand design provides superior load capacity and stability.
In addition, this structure distributes mechanical stress more efficiently. As a result, the chain handles heavy loads with reduced failure risk.
Another key advantage is efficiency. The 80-3 triplex roller chain reduces vibration and improves sprocket engagement. Therefore, systems run smoother and more accurately.
In daily operations, this means higher productivity and less maintenance. This makes it a reliable choice for critical applications.
What is an 80-3 Triplex Roller Chain?
The 80-3 triplex roller chain is a transmission chain with three parallel strands. This triple strand design increases strength and durability.
It also follows the ANSI #80 standard. This ensures compatibility with industrial sprockets.
In practice, it connects components and transfers motion between shafts. Therefore, it is essential for high-demand systems.
Its rollers reduce friction and improve efficiency. As a result, performance remains stable over time.
What is the 80-3 Chain Used For?
The 80-3 triplex roller chain is designed for heavy-duty applications. It is widely used in industrial environments.
It is also found in conveyors, mining equipment, and agricultural machinery. This is because it supports high loads.
Another common use is in continuous production lines. In these cases, reliability is essential.
Its main function is to transfer motion efficiently. This keeps systems running smoothly.
Key Benefits of the 80-3 Triplex Roller Chain
Maximum load capacity
The triple strand design distributes stress effectively.
High durability
Materials resist wear and extend lifespan.
Reduced vibration
Improves alignment and stability.
Efficient transmission
Rollers reduce friction and improve performance.

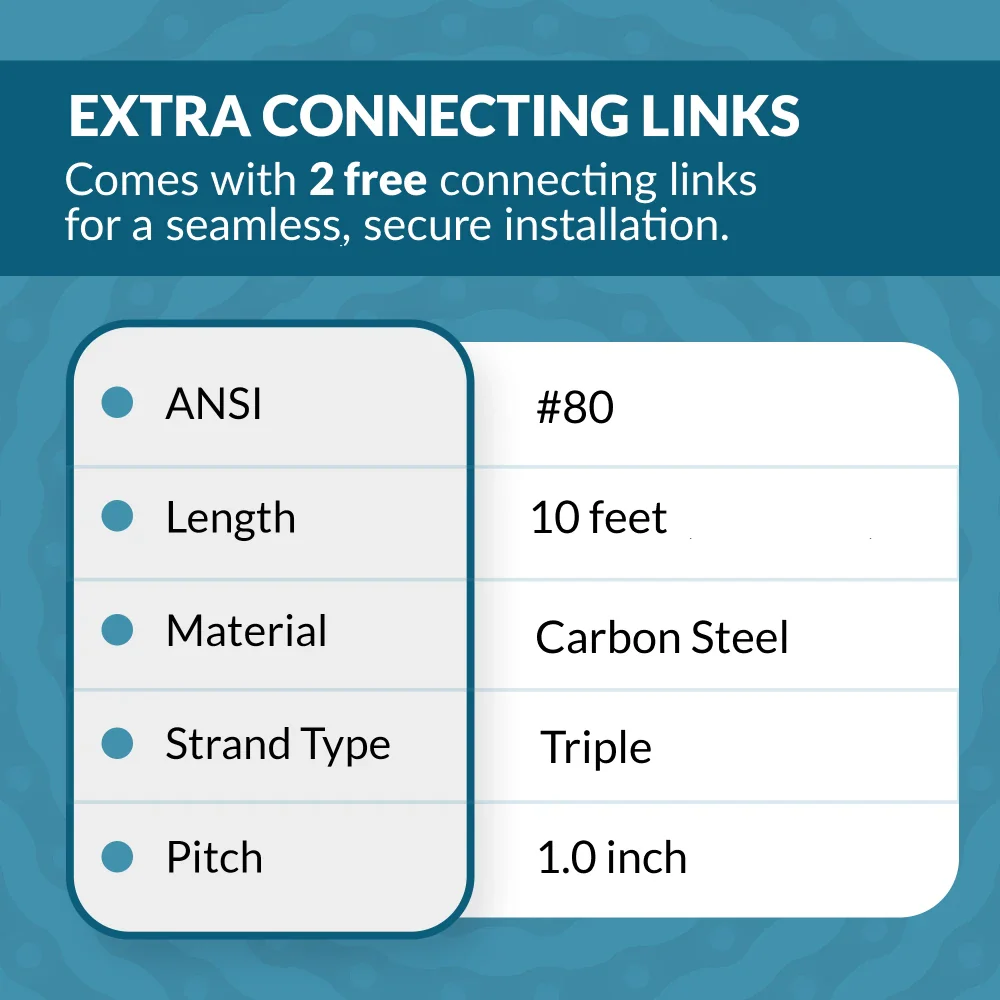

Technical Specifications of the 80-3 Chain
The 80-3 triplex roller chain follows ANSI standards.
-
Type: Triplex (triple strand)
-
Standard: ANSI #80
-
Length: 10FT
-
Includes: 2 connecting links
-
Application: Heavy-duty power transmission
These features ensure reliability in demanding environments.
How to Choose the Right 80-3 Chain
Choosing the correct 80-3 triplex roller chain improves performance.
First, check sprocket compatibility.
Then, evaluate load requirements.
Also, select the proper length.
With these steps, selection becomes more accurate.
Maintenance and Usage Tips
Proper maintenance extends the life of the 80-3 triplex roller chain.
First, apply lubrication regularly.
Then, adjust chain tension.
Also, perform inspections.
With these practices, systems remain reliable.
PGN Triplex Chain Product Line
Explore options at https://pgnbearings.com/collections/roller-chains
60-3 Triplex Roller Chain x 10FT
Moderate load applications.
80-3 Triplex Roller Chain x 10FT
Heavy-duty industrial use.
Why Choose PGN Bearings?
PGN provides reliable industrial solutions.
Certified quality
ANSI-compliant products.
Wide selection
Multiple sizes available.
Fast shipping
Minimizes downtime.
Technical support
Expert assistance.
FAQ – Frequently Asked Questions
What is a triplex chain?
A chain with three strands for heavy loads.
Is triplex stronger than duplex?
Yes, it distributes load more efficiently.
How many links are in a 10FT chain?
It depends on pitch.
Can I use an 80-3 chain in any system?
No, compatibility must be checked.
How to extend chain lifespan?
Proper lubrication and maintenance are key.
